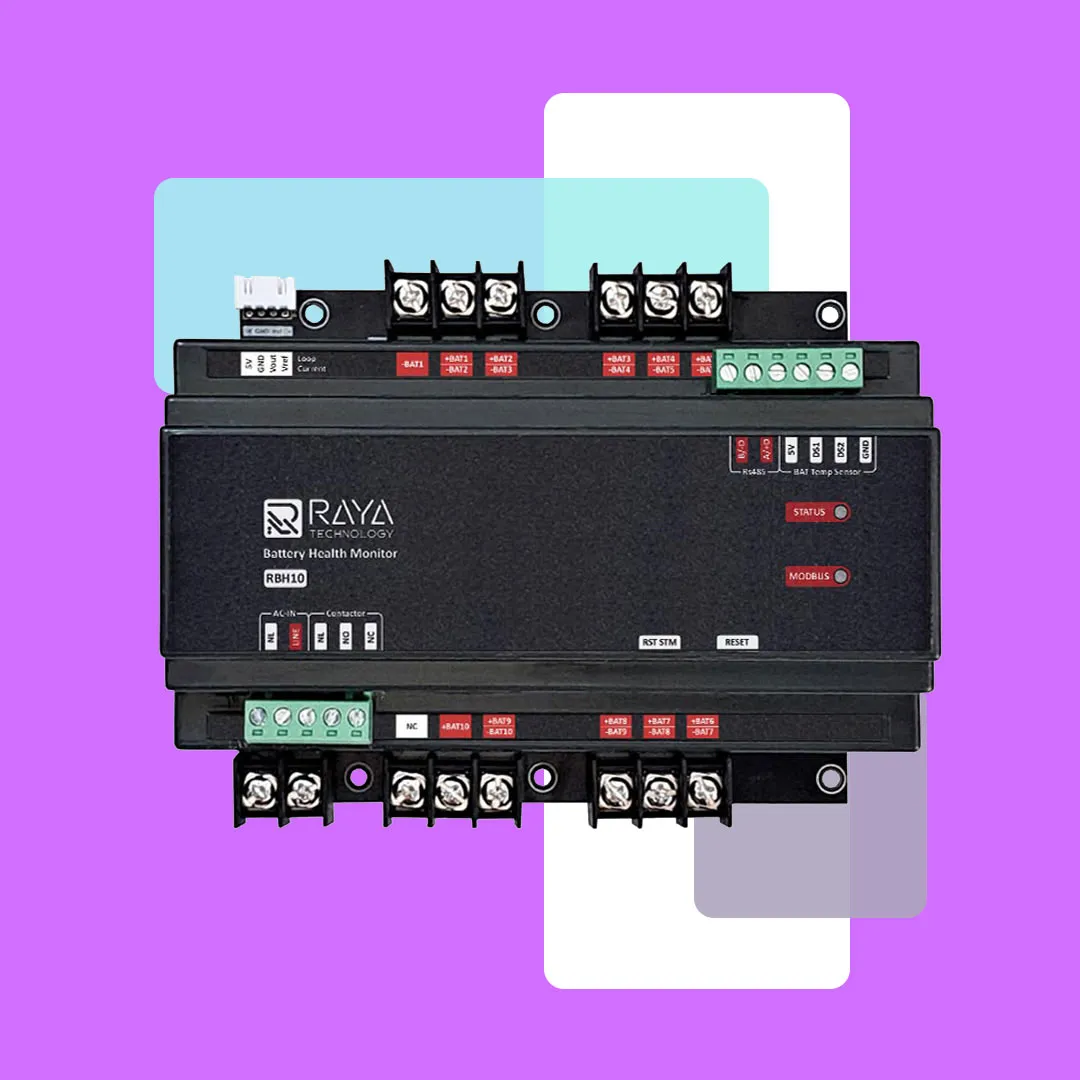

Battery Health Monitor 10 Channel– Model RBH10
This Battery Health Monitor (RBH10) is a product of Raya Technology. Its main function is to monitor the health of batteries (especially UPS batteries) under various conditions. By measuring parameters such as voltage, current, temperature, and internal resistance of battery cells, the device evaluates their health status. Communication is carried out via the Modbus protocol, allowing real-time monitoring and data logging.
✅ High accuracy in assessing battery health
✅ Integratable with network monitoring systems (SNMP / JSON / TCP)
✅ Suitable for data centers, industrial facilities, banks, and high-capacity UPS systems
Cold Test
Measurement of voltage, current, and temperature of each battery during normal UPS operation
Hot Test
Measurement of internal resistance, voltage, current, and temperature for precise battery health assessment
UPS Control
Ability to command the contactor to disconnect or connect input and output power
Comprehensive Communication
Supports RS-485 and Modbus RTU, and if needed, with an RMC20 converter, transmits results over LAN (Ethernet) in SNMP, JSON, Metrics, and Modbus TCP formats
Expandable Capability
Each device covers 10 batteries; with a converter, you can manage up to 10 devices, totaling 100 batteries simultaneously
Data centers and IT facilities to ensure uninterrupted emergency power.
Oil, gas, and petrochemical industries to guarantee the readiness of backup systems.
Hospitals and healthcare centers to ensure the operation of critical medical equipment.
Power plants and substations for managing industrial battery banks.
Large organizations and government offices for monitoring and maintaining UPS batteries.
– Support for Modbus RTU Protocol over RS485 Network
– The communication protocols embedded in this device allow connection to various PLCs, DCSs, and RTUs.
Monitoring the health of UPS batteries in data centers, server rooms, and critical equipment.
Measuring battery internal resistance to detect faulty batteries early.
Data logging and monitoring for analyzing battery aging trends.
Connection to industrial monitoring systems via the Modbus protocol.
Load management and alerting in case of an issue with any battery.
:Cold Test
Measuring the voltage of each individual battery while the UPS is active.
Measuring the current passing through each of the 10 batteries.
Measuring the temperature of each battery separately.
Measuring the temperature of the battery case.
:Hot Test
Measuring battery temperature, voltage, and current.
Calculating the internal resistance of each battery.
Displaying change charts during the test.
:UPS System Control
:Communications and Protocols
Hardware Protocol: RS-485
Software Protocol: Modbus RTU
Ability to connect to the RMC20 converter for
Automatic execution of testing processes
Providing results over LAN (Ethernet) hardware protocol in the following formats
Metrics SNMP JSON Modbus TCP
Scalability
One device is required for every 10 batteries.The converter allows simultaneous control of 10 devices (up to 100 batteries)
