RTU Central Processor Unit

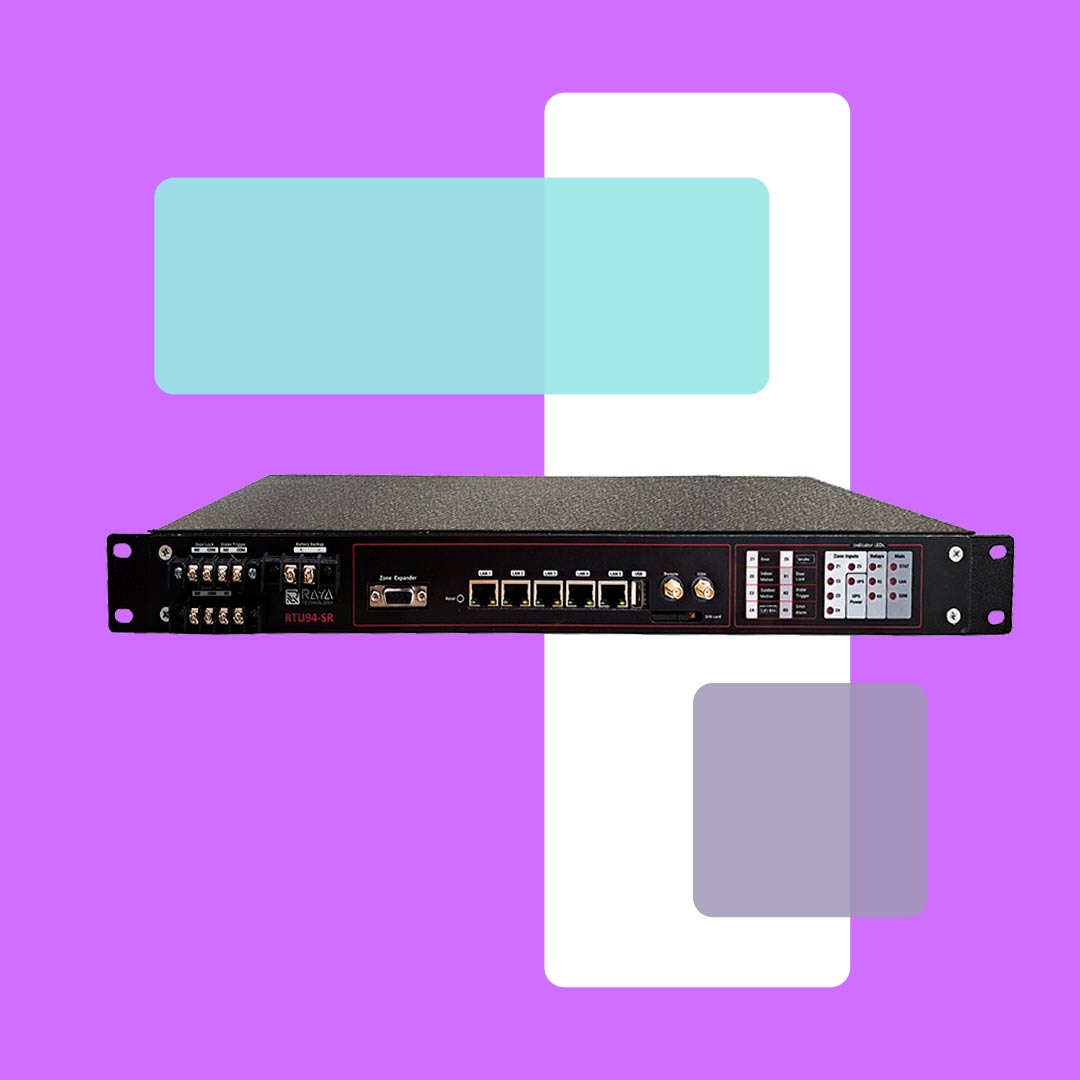

Model RTU94-SR

The RTU94-SR device is an advanced industrial control and monitoring unit designed to connect between different layers of industrial networks. This device is capable of collecting data from downstream networks and sending it to upstream networks, and it also enables receiving commands from upstream networks and applying commands to downstream networks. Accordingly, RTU94-SR, as a reliable communication bridge, plays a key role in data transmission and command execution in industrial automation systems.

Products Catalog
Chat on WhatsApp
دیتاشیت انگلیسی ایکون scaled
RTU
اینترنال سوییچ

Internal Switch

Internal switch for downstream networks

snmp

SNMP Communication

SNMP communication capability

وب سرویس

Web Service

Ability to RUN web service for HTTP networks

https

HTTPS Support

HTTPS support capability

ویژگی های کلیدی

– Internal switch for downstream networks
– SNMP communication capability
– Ability to RUN web service for HTTP networks
– HTTPS support capability
– Capability to read UPS parameters via the SNMP network; it also delivers information to the upstream network and the monitoring network
– Transferring alarms via email or standard Matrix protocols to monitoring systems and authorized personnel
– Capability to control equipment such as siren drivers, electric door drivers, and various equipment that are controlled using 220V power
– Capability to connect various sensors to itself and deliver the data of these sensors to upstream networks and the monitoring system

ویژگی های کلیدی
پروتکل

– HTTP
– SNMP
– FTP
– NTP Server

پروتکل

جهت دریافت تمامی ویدئوهای فعلی و جدیدترین ویدئوهای ضبط شده با موضوعات اتصال و راه اندازی محصول و ارتباط با انواع PLC و HMI کلیک کنید.

ویدئوهای جدید رو به ایمیل من بفرست
VIDEO

Connecting PLCs to Instrumentation Equipment

اتصال به انواع

Product-Related Questions

Yes. These sensors can be connected to various computers (regardless of the operating system) using RS-485 to USB converters.

Your technical questions about the product can be sent as text messages (SMS or social media) to the support team, and the technical experts will respond through the same channels. If needed, they will contact you directly.

Sales and Support Team Number:
+989177391091

Yes. Since the device enclosure has an IP66 protection rating against water and dust ingress, this product can be used in outdoor environments. However, it is not recommended to expose it continuously to rain or direct water spray.

Due to the protective cover on the sensor, sudden sprays of non-acidic liquids are repelled and do not cause any damage to the sensor.

Since this sensor communicates via the Modbus protocol with devices such as PLCs, RTUs, and HMIs, you can view the measurements on industrial HMI displays and your personal computer monitor.

Yes. One meter of flexible four-core cable (power + RS-485) with a thickness of 0.25 mm² is included with the product.

Via the Modbus-RTU network

Yes, the sensor’s slave address can be changed via software using Modbus commands.

The components used in this sensor are manufactured in the USA and Switzerland.

Yes, according to Modbus protocol standards, this is possible. For more information and details on how to differentiate sensor data, you can refer to the sensor setup tutorial file.

You can find all tutorials and necessary files on the product page under the “Product Videos” and “Downloadable Files” tabs. Click here.

Some PLCs have an RS-485 port, allowing the sensor to connect directly. However, for PLCs without an RS-485 port, the sensors must be connected via RS-485 expansion cards.

Due to the sensor’s casing material, it cannot be installed directly inside a furnace. However, the company can provide the sensor with a half-meter cable, allowing customers to place the sensor circuitry outside while installing the sensor itself inside the furnace.
