Modbus Temperature and Humidity Sensor Model TH1-ECO

!We have your temperature and humidity

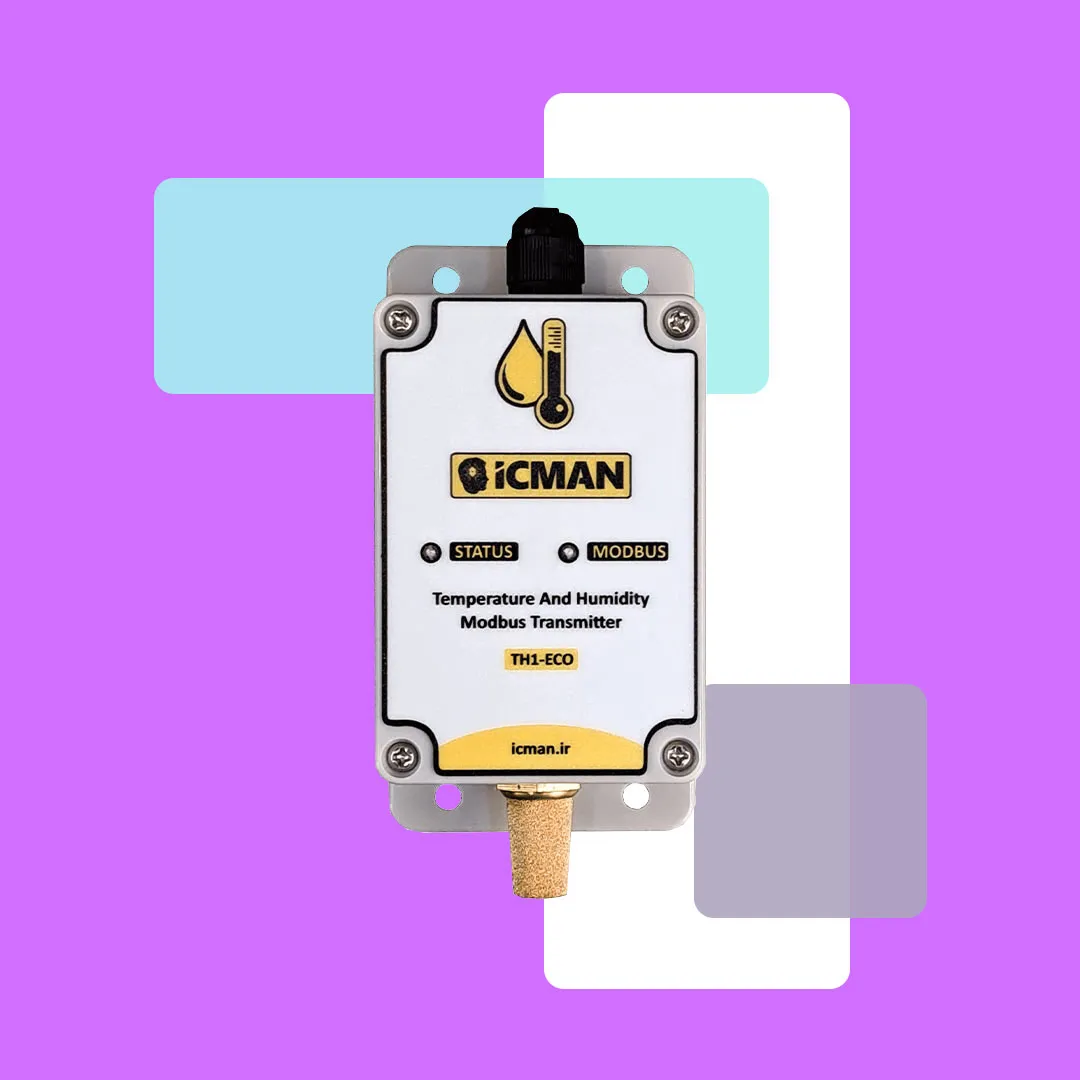

Modbus Temperature and Humidity Sensor TH1-ECO

The Modbus Temperature and Humidity Sensor, model TH1-ECO, measures temperature and humidity in both industrial and non-industrial environments such as greenhouses, poultry farms, livestock facilities, server rooms, laboratories, cold storage facilities, residential and office buildings, and more.

This device transmits temperature and humidity data via the RS-485 network using the Modbus software protocol to industrial equipment such as PLCs, DCSs, RTUs, and others.

Chat on WhatsApp

✅ High-accuracy temperature measurement using PT1000 sensor over a wide temperature range
✅ Built-in transmitter with the ability to read data and transmit it via Modbus RTU (RS485) and Modbus TCP (LAN)
✅ Dual communication (RS485 and LAN) for greater flexibility in control systems
✅ Software calibration for precise adjustment and correction of potential sensor errors
✅ Ability to configure Modbus address, baud rate, and other communication parameters
✅ Industrial and rugged design suitable for harsh environmental conditions

✅ Two PT1000 sensors can be connected to the transmitter.

🔹 پشتیبانی از Modbus RTU و Modbus TCP برای ادغام در انواع سیستم‌های SCADA، PLC و HMI
🔹 امکان خواندن دما در واحدهای مختلف (سلسیوس، فارنهایت)
🔹 قابلیت تعریف آستانه‌های هشدار و تنظیمات کالیبراسیون
🔹 سازگار با نرم‌افزارهای مانیتورینگ صنعتی و سامانه‌های IOT

✔ کنترل و مانیتورینگ دمای محیط در صنایع نفت، گاز و پتروشیمی
✔ اتوماسیون گلخانه‌ها و سیستم‌های تهویه هوشمند
✔ مانیتورینگ دما در تجهیزات حساس آزمایشگاهی و پزشکی
✔ پایش و کنترل دما در کوره‌ها، سردخانه‌ها و خطوط تولید صنعتی
✔ کاربرد در سیستم‌های مدیریت انرژی و بهینه‌سازی مصرف انرژی

چرا این محصول؟

با ترکیب دقت بالای سنسور PT1000 و انعطاف‌پذیری ارتباطی از طریق Modbus RTU و TCP، این محصول یک گزینه ایده‌آل برای کاربردهای صنعتی و اتوماسیون پیشرفته است. طراحی مقاوم، قابلیت کالیبراسیون نرم‌افزاری و امکان ادغام در سیستم‌های مدرن کنترلی، این سنسور را به انتخابی مطمئن برای پروژه‌های مانیتورینگ دما تبدیل کرده است.

جهت دریافت تمامی ویدئوهای فعلی و جدیدترین ویدئوهای ضبط شده با موضوعات اتصال و راه اندازی محصول و ارتباط با انواع PLC و HMI کلیک کنید.

ویدئوهای جدید رو به ایمیل من بفرست

Connecting PLCs to Instrumentation Equipment

Can the sensor be connected to a computer or laptop? If yes, how?

Yes. These sensors can be connected to various computers (regardless of the operating system) using RS-485 to USB converters.

If you have technical questions about the product and its components, how can you ask them?

Your technical questions about the product can be sent as text messages (SMS or social media) to the support team, and the technical experts will respond through the same channels. If needed, they will contact you directly.

Sales and Support Team Number:
+989177391091

Can the product be used in outdoor environments?

Yes. Since the device enclosure has an IP66 protection rating against water and dust ingress, this product can be used in outdoor environments. However, it is not recommended to expose it continuously to rain or direct water spray.

Does direct water spray on the sensor cover cause damage to the sensor?

Due to the protective cover on the sensor, sudden sprays of non-acidic liquids are repelled and do not cause any damage to the sensor.

How can the measurements taken by this sensor be viewed?

Since this sensor communicates via the Modbus protocol with devices such as PLCs, RTUs, and HMIs, you can view the measurements on industrial HMI displays and your personal computer monitor.

Is a cable included with the sensor?

Yes. One meter of flexible four-core cable (power + RS-485) with a thickness of 0.25 mm² is included with the product.

Through which network does the sensor communicate with other equipment?

Via the Modbus-RTU network

Can I change the sensor's address?

Yes, the sensor’s slave address can be changed via software using Modbus commands.

Which countries are the components used in this circuit manufactured in?

The components used in this sensor are manufactured in the USA and Switzerland.

Is it possible to use multiple sensors on a single Modbus network (line)?

Yes, according to Modbus protocol standards, this is possible. For more information and details on how to differentiate sensor data, you can refer to the sensor setup tutorial file.

Where can I find the product installation and setup guides?

You can find all tutorials and necessary files on the product page under the “Product Videos” and “Downloadable Files” tabs. Click here.

Does the sensor connect directly to the PLC?

Some PLCs have an RS-485 port, allowing the sensor to connect directly. However, for PLCs without an RS-485 port, the sensors must be connected via RS-485 expansion cards.

Can this sensor be used in a furnace?

Due to the sensor’s casing material, it cannot be installed directly inside a furnace. However, the company can provide the sensor with a half-meter cable, allowing customers to place the sensor circuitry outside while installing the sensor itself inside the furnace.
