Capture Data Accurately, Make Smarter Decisions

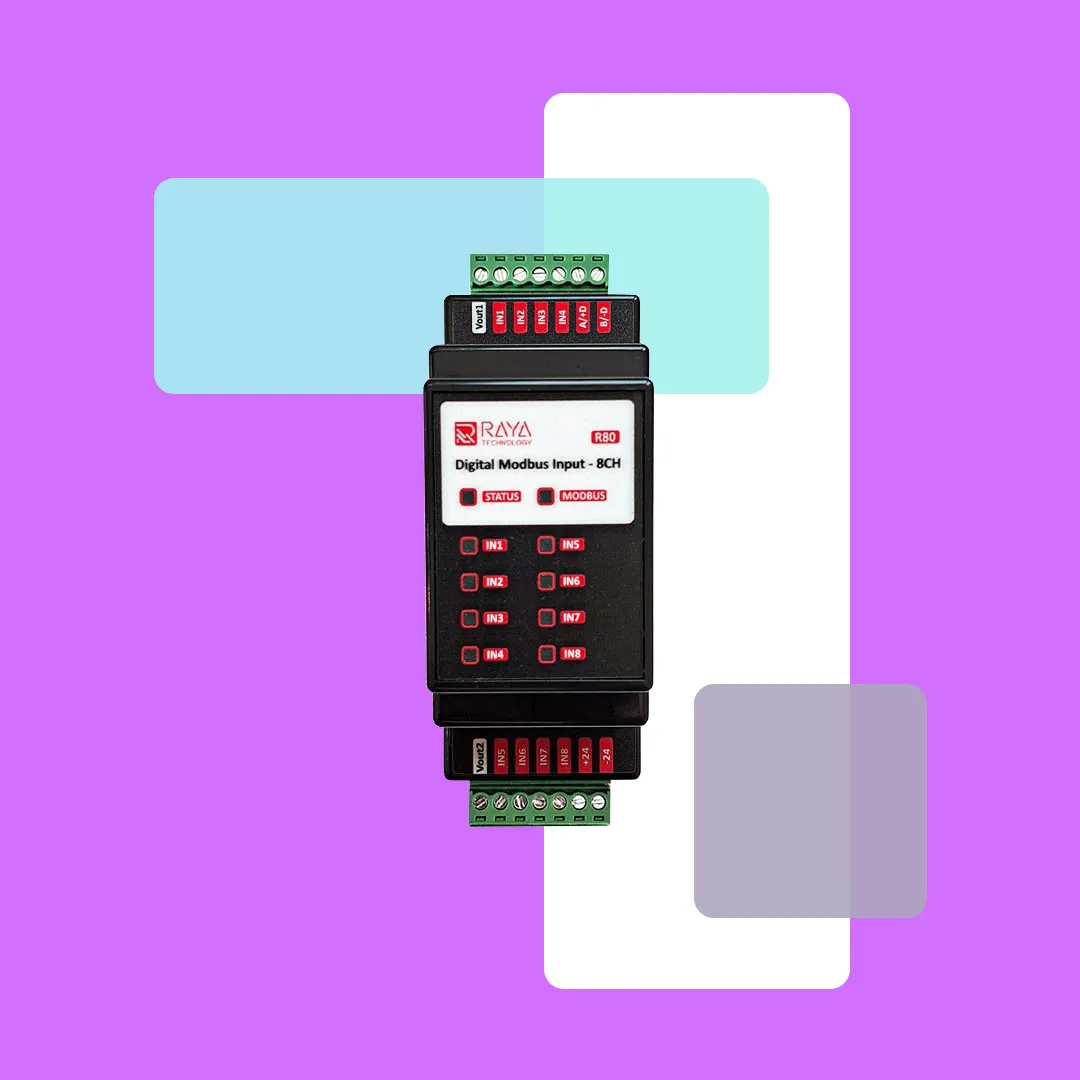

8Channel Input Card, Model R80
Digital Modbus Input – 8CH

The isolated digital input card with Modbus RTU protocol is an advanced communication module for receiving digital signals in industrial control systems. This product communicates with other equipment via the RS-485 network and, thanks to its internal isolation, not only enhances safety but also prevents electrical noise. Its slim 36 mm design and status indicators for inputs and network make installation and setup easy for users.

Chat on WhatsApp
دیتاشیت انگلیسی ایکون scaled
R80 1

Modbus RTU Protocol

Modbus RTU protocol based on RS-485

i-1-R08

Slim dimensions

The slimmest input card on the market with a 36 mm width

i-R44-2

Built-in isolation

Equipped with built-in isolated voltage for feedback supply

i-2-R08

Status indicator display

Displays the status of digital inputs and network communication

I-R80-1

Easy installation

Suitable for mounting on a standard DIN rail

I-R80-2

Industrial design

Resistant to electrical noise and electromagnetic interference

کاربردها

This digital input card is used in industrial automation systems, building automation, greenhouses, production lines, and energy monitoring systems. Thanks to its internal isolation and resistance to environmental noise, it is an ideal choice for sensitive industrial environments and locations with long distances between sensors and the central controller.

کاربردها
ویژگی های کلیدی

✅ Communication with central device via Modbus RTU protocol

✅ Receives digital signals from 8 independent inputs

✅ Internal isolation for enhanced safety and noise reduction

✅ Individual input status display via indicator LEDs

✅ Supports standard range voltage and switch signals

✅ Automatic detection system for Modbus network disconnection

✅ Modbus address configurable via Write Single Holding Register function (0x06)

✅ Simultaneous reading of all input statuses via Read Discrete Inputs function (0x02)

✅ Reading all input statuses via Read Holding Register command (0x03)

✅ Special protection for RS-485 port to enhance communication stability

✅ 24V DC power supply with optimized consumption

✅ Easy installation on standard DIN rail

ویژگی های کلیدی
i 2 R80 ND

The isolated digital input module is designed to receive digital signals from sensors, switches, and control devices. By utilizing internal isolation, this module enhances system safety and prevents the transmission of electrical noise. Each input independently detects signal status and sends it to the central control system via the Modbus RTU protocol over the RS-485 network. With its slim design and status display, this module is an ideal choice for industrial automation and smart monitoring systems.

i 2 R80 ND

جهت دریافت تمامی ویدئوهای فعلی و جدیدترین ویدئوهای ضبط شده با موضوعات اتصال و راه اندازی محصول و ارتباط با انواع PLC و HMI کلیک کنید.

ویدئوهای جدید رو به ایمیل من بفرست
VIDEO

Connecting PLCs to Instrumentation Equipment

انواع اتصال 2

Product-Related Questions

Yes. These sensors can be connected to various computers (regardless of the operating system) using RS-485 to USB converters.

Your technical questions about the product can be sent as text messages (SMS or social media) to the support team, and the technical experts will respond through the same channels. If needed, they will contact you directly.

Sales and Support Team Number:
+989177391091

Yes. Since the device enclosure has an IP66 protection rating against water and dust ingress, this product can be used in outdoor environments. However, it is not recommended to expose it continuously to rain or direct water spray.

Due to the protective cover on the sensor, sudden sprays of non-acidic liquids are repelled and do not cause any damage to the sensor.

Since this sensor communicates via the Modbus protocol with devices such as PLCs, RTUs, and HMIs, you can view the measurements on industrial HMI displays and your personal computer monitor.

Yes. One meter of flexible four-core cable (power + RS-485) with a thickness of 0.25 mm² is included with the product.

Via the Modbus-RTU network

Yes, the sensor’s slave address can be changed via software using Modbus commands.

The components used in this sensor are manufactured in the USA and Switzerland.

Yes, according to Modbus protocol standards, this is possible. For more information and details on how to differentiate sensor data, you can refer to the sensor setup tutorial file.

You can find all tutorials and necessary files on the product page under the “Product Videos” and “Downloadable Files” tabs. Click here.

Some PLCs have an RS-485 port, allowing the sensor to connect directly. However, for PLCs without an RS-485 port, the sensors must be connected via RS-485 expansion cards.

Due to the sensor’s casing material, it cannot be installed directly inside a furnace. However, the company can provide the sensor with a half-meter cable, allowing customers to place the sensor circuitry outside while installing the sensor itself inside the furnace.
