Inputs and outputs, all on one card – Model R44

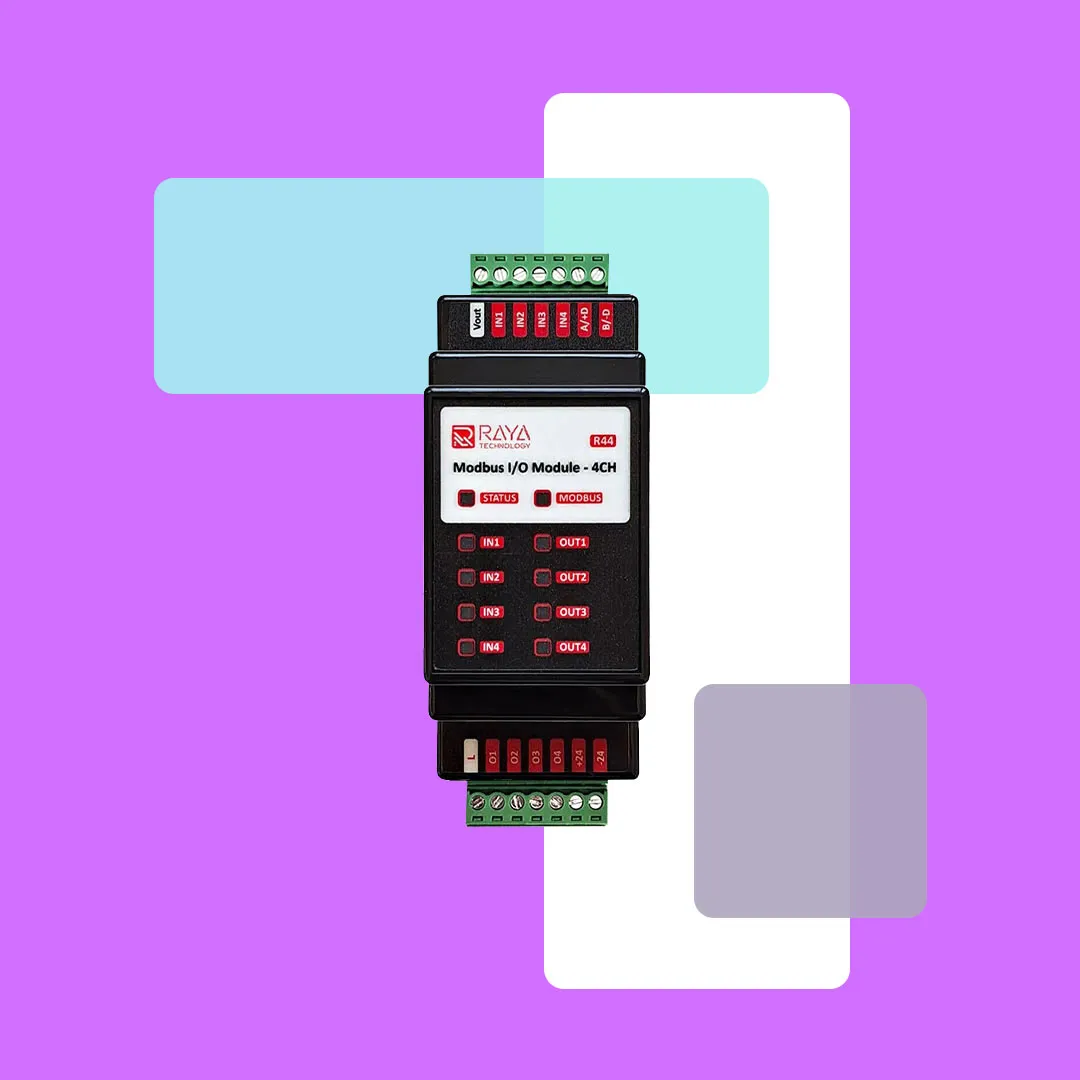

8-Channel I/O Module – Model R44
Modbus I/O Module (4 Inputs / 4 Outputs)

The R44 is a versatile and compact I/O module featuring 4 isolated digital inputs and 4 relay outputs, designed for industrial automation systems. It communicates with the central controller via the Modbus RTU protocol over RS-485 network, enabling full configuration, monitoring, and control capabilities directly through software.

With isolated inputs for receiving digital signals and relay outputs for controlling external devices, the R44 module provides a complete solution for managing industrial processes. The Modbus RTU protocol allows for flexible addressing and reliable communication within distributed control systems.

This module is ideal for smart monitoring systems, remote control, industrial automation, security systems, smart greenhouses, and energy management. The integration of both inputs and outputs in a single unit makes it an efficient and practical choice for equipment control, sensor status monitoring, and industrial process management.

Chat on WhatsApp
دیتاشیت انگلیسی ایکون scaled
R44 1
مدباس

Modbus Protocol

Communication via Modbus RTU protocol over RS-485 network

i-R44-1

4 Inputs and 4 Outputs

Integration of 4 inputs and 4 outputs in a single module for space and cost efficiency

i-R44-2

Input Protection

Built-in isolation for input protection and noise immunity

i-R44-3

Automatic Detection

Automatic Detection System

i-R44-4

Safety

Automatic output shutdown on network disconnection for enhanced safety Dedicated LEDs for input, output, and network status indication

i-R44-5

Configuration

Supports software-based Modbus address configuration and remote command execution

ویژگی های کلیدی

✅ Communication with the central device via Modbus RTU protocol
✅ 4 isolated digital input channels for receiving digital signals
✅ 4 relay output channels (1A) for controlling various devices
✅ Internal isolation for input protection and noise reduction
✅ Ability to control devices up to 1000 meters away from the central controller
✅ Automatic detection system
✅ Automatic output shutdown after 4 minutes of Modbus network disconnection to enhance safety
✅ Modbus address configuration via Write Single Holding Register function (0X06)
✅ Reading input status via Read Discrete Inputs function (0X02)
✅ Reading relay status via Read Holding Register function (0X03)
✅ Sending relay commands via Write Single Holding Register function (0X06)
✅ Special protection for RS-485 port against noise and voltage fluctuations
✅ 24V DC power supply with optimized consumption
✅ Easy installation on standard DIN rail
✅ Separate LEDs for network, input, and output status indication
