LX1 ECO

?Is the Lighting in Your Greenhouse Optimized

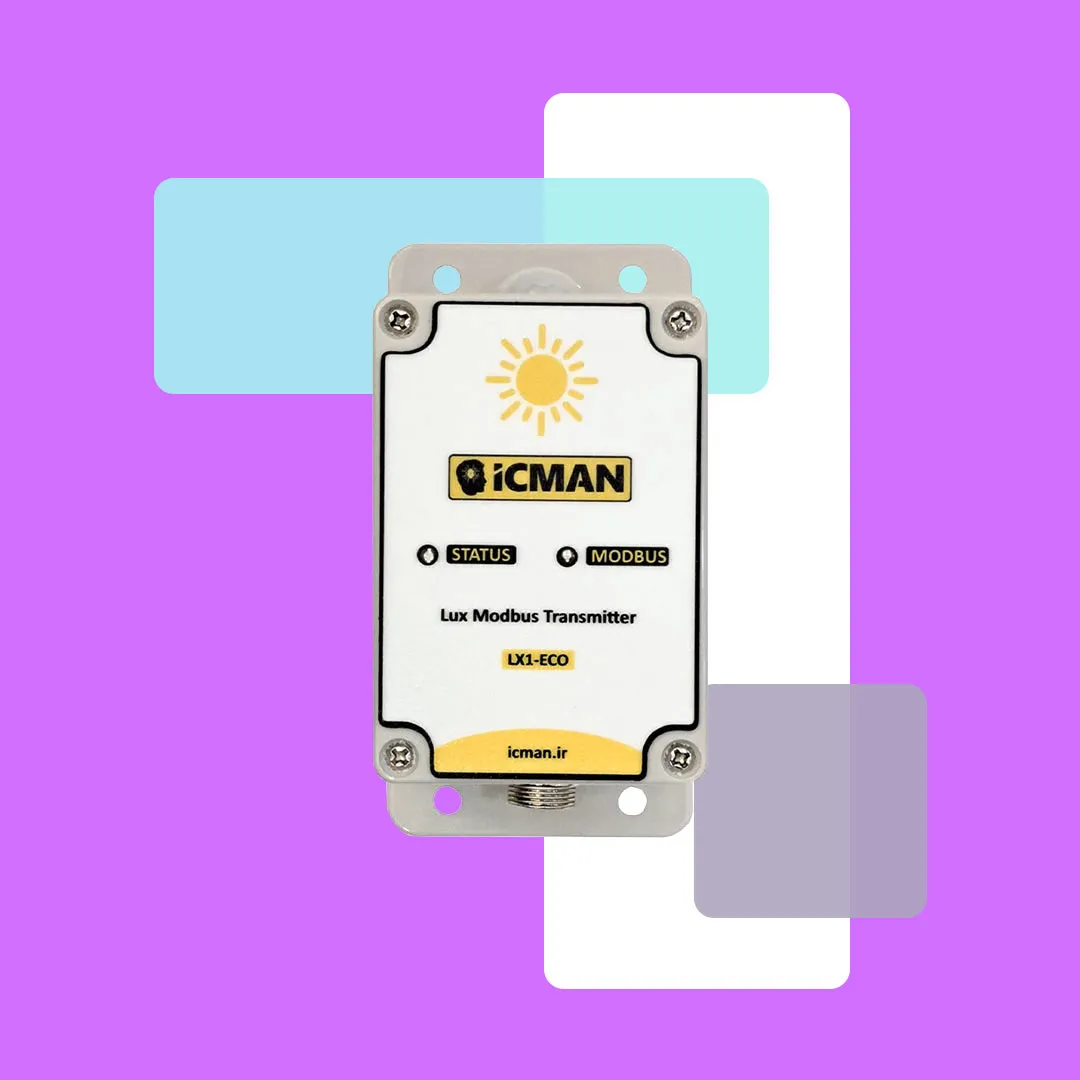

Modbus Lux Meter Sensor – Model LX1

The LX1 Lux Meter Sensor measures ambient light intensity in both industrial and non-industrial environments such as greenhouses, poultry farms, livestock centers, server rooms, laboratories, cold storage units, offices, and residential buildings.
This device transmits lux (light intensity) data via the RS-485 network using the Modbus RTU protocol to industrial systems such as PLCs, DCSs, RTUs, and more.

Chat on WhatsApp
دیتاشیت انگلیسی ایکون scaled
LX1 ECO
مدباس

Modbus Protocol

Transmits temperature and humidity data to devices such as PLCs and RTUs via the RS-485 network using the Modbus RTU protocol

I-3-RC2-D

Measurement Range

Temperature range: -20°C to +85°C Humidity range: 0% to 100% RH

ضد اب

Dust and Water-Resistant Package

Dust and Water-Resistant Enclosure with IP64 Rating

ترینال

Compatibility with Various PLCs

Capability to connect to Delta, Siemens, Fatek PLCs, and others via RS-485 network

قطعات

High-Quality Components

Use of American components and high-precision Swiss sensors in product manufacturing

جهت دریافت تمامی ویدئوهای فعلی و جدیدترین ویدئوهای ضبط شده با موضوعات اتصال و راه اندازی محصول و ارتباط با انواع PLC و HMI کلیک کنید.

ویدئوهای جدید رو به ایمیل من بفرست
VIDEO

Connecting PLCs to Instrumentation Equipment

اتصال به انواع.RC2 D. 1 2

Product-Related Questions

Yes. These sensors can be connected to various computers (regardless of the operating system) using RS-485 to USB converters.

Your technical questions about the product can be sent as text messages (SMS or social media) to the support team, and the technical experts will respond through the same channels. If needed, they will contact you directly.

Sales and Support Team Number:
+989177391091

Yes. Since the device enclosure has an IP66 protection rating against water and dust ingress, this product can be used in outdoor environments. However, it is not recommended to expose it continuously to rain or direct water spray.

Due to the protective cover on the sensor, sudden sprays of non-acidic liquids are repelled and do not cause any damage to the sensor.

Since this sensor communicates via the Modbus protocol with devices such as PLCs, RTUs, and HMIs, you can view the measurements on industrial HMI displays and your personal computer monitor.

Yes. One meter of flexible four-core cable (power + RS-485) with a thickness of 0.25 mm² is included with the product.

Via the Modbus-RTU network

Yes, the sensor’s slave address can be changed via software using Modbus commands.

The components used in this sensor are manufactured in the USA and Switzerland.

Yes, according to Modbus protocol standards, this is possible. For more information and details on how to differentiate sensor data, you can refer to the sensor setup tutorial file.

You can find all tutorials and necessary files on the product page under the “Product Videos” and “Downloadable Files” tabs. Click here.

Some PLCs have an RS-485 port, allowing the sensor to connect directly. However, for PLCs without an RS-485 port, the sensors must be connected via RS-485 expansion cards.

Due to the sensor’s casing material, it cannot be installed directly inside a furnace. However, the company can provide the sensor with a half-meter cable, allowing customers to place the sensor circuitry outside while installing the sensor itself inside the furnace.
